Node material from external file

Questions
1

hello everyone…
I was trying to use the code generated in nodeMaterial Editor… but save it in an external file.

how should I call this file? and how can I call it in?
don’t know how to proceed on this one.

thanks for your support

2
const myNodeMaterial = BABYLON.NodeMaterial.Parse(myJson, scene)

Example - https://playground.babylonjs.com/#098LAF#18

3 Likes
3

or if you store the json as a file: BABYLON,NodeMaterial.ParseFromFileAsync(“”, url… might come handy :slight_smile:

2 Likes
4

thanks a lot for your help!
sorry it took time to get back at you… i was trying to make that work…

Yeah I was trying to save a code in a json as a file, but couldn’'t make it work.
I need it to be externaly in a file… cause I cant use an external link outside from my folders.

I tried saving the data generated by the nodeMaterial editor and saved as a file called “myMaterial.js”

then, inside my code

 BABYLON,NodeMaterial.ParseFromFileAsync(“”,“myMaterial.json”, scene).then( (nodeMaterial) => {
        var newMaterial= nodeMaterial;
        sphere.material = newMaterial;
    })

should it be something like this?

5
  1. You have ‘,’ instead of ‘.’ after BABYLON.
  2. For this function you need to provide json URL and also build node material itself.
  3. Here is the example - https://playground.babylonjs.com/#098LAF#19

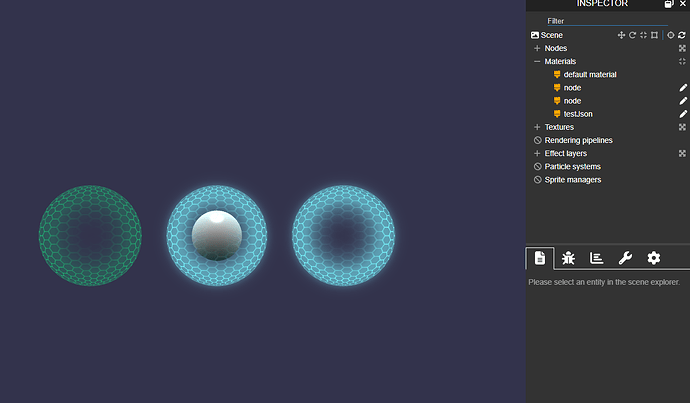

    I saved slightly greened material to json and then load it to the left sphere. Seems it works :slight_smile:
    image1260×736 119 KB
    BABYLON.NodeMaterial.ParseFromFileAsync('testJson', "https://raw.githubusercontent.com/eldinor/ForBJS/master/hexnm.json", scene).then((nodeMaterial) => {
        nodeMaterial.build();
        shield3.material = nodeMaterial;
    });
2 Likes
6

Thanks a lot!
Now working like charm!
I wanted to use several materials in a project that will be chosen from variables…
So now I can have the material code in separated files and will have a cleaner code…

Thanks a lot… will be sharing my results soon!

1 Like
