How to Create a Sphere with Only Edges

[Tricotou]

Hello

@XIYO

but there is a diagonal line in the middle

It’s because OpenGL is using only triangles, and the current Wireframe Shader is drawing them as is.

@XIYO

What I want is to use MeshBuilder Sphere to create concise code that achieves the desired design and can rotate.

Then it’s a perfect match for a nice Node Material Editor game !

---

Modulo on Y coordinates, applied on a LessThan boolean :

---

Then do the same but instead of the Y coord, take the horizontal angle.
This is acheived easily using the arctan2 function along with X and Z coordinates, applied as well on a LessThan boolean :

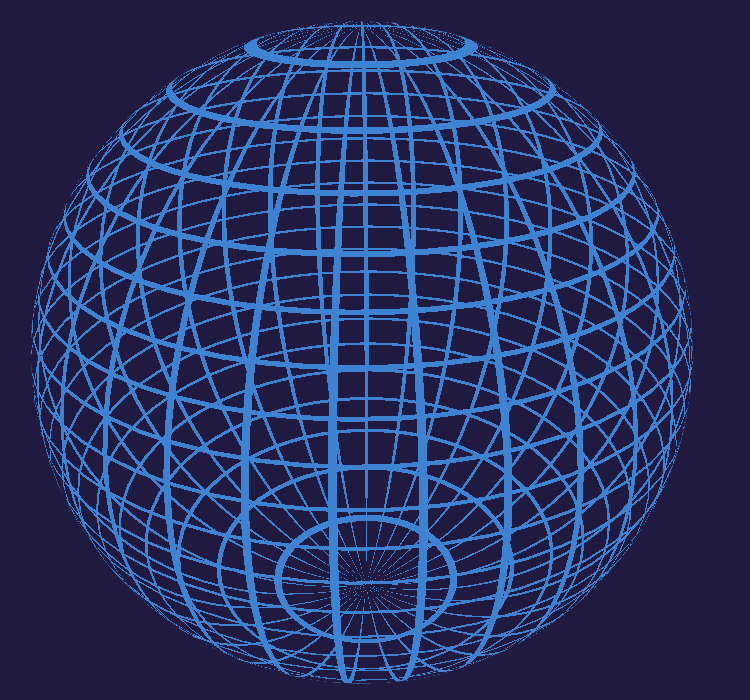

Finally, merge both in a MAX node :

---

Here is the Node Material if you want to edit
And here is the Playground loading this custom material

++
Tricotou
