Why my Scene objects turn black?

[AbdulrehmanSuliman]

I followed this tutorial (03. Physically Based Rendering (PBR) Materials in BabylonJS - YouTube) but I am using Reactjs and TypeScript and I noticed when I add some textures the objects in my scene turn black and become unstable and I don’t know why.
Attached is the result when adding the textures in CreateAsphalt() method and even if I count only the first texture the result isn’t good.

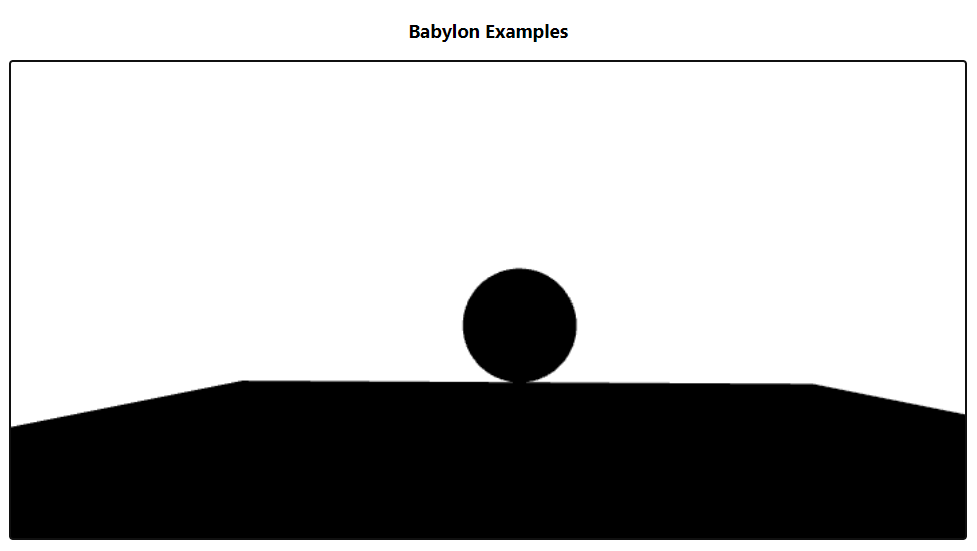

This is the current output:

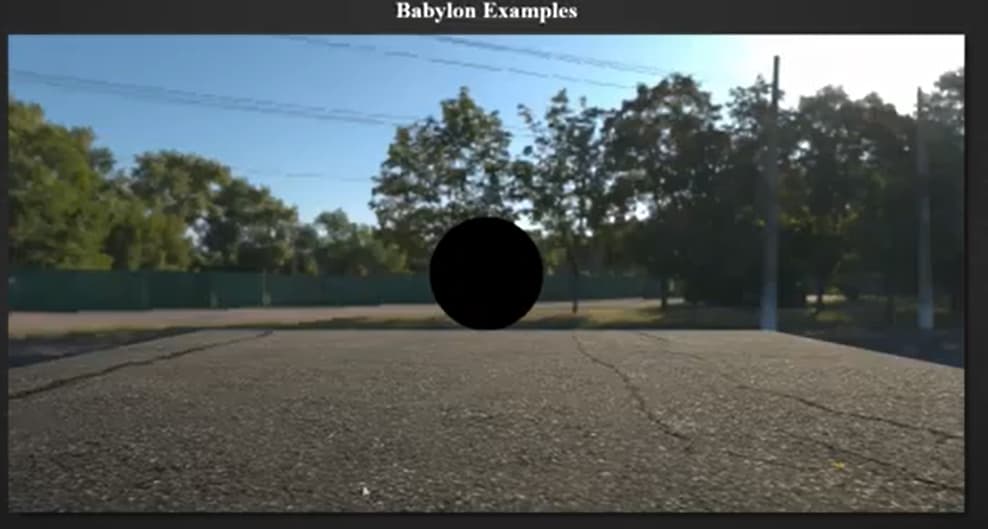

This is the expected output from the youtube tutorial:

This is my code:

export class PBR {
    scene: Scene;
    engine:Engine;

    constructor(private canvas: HTMLCanvasElement) {
        this.engine = new Engine(this.canvas, true);
        this.scene = this.CreateScene();
        this.CreateEnvironment();
        this.engine.runRenderLoop(()=>{
            this.scene.render();
        });
    }
    CreateScene(): Scene {
        const scene = new Scene(this.engine);
        const camera = new FreeCamera("camera", new Vector3(0,1,-5), this.scene);
        camera.attachControl();
        camera.speed = 0.25;

        const hemiLight = new HemisphericLight("hemiLight",new Vector3(0,1,0),this.scene);
        hemiLight.intensity = 0.0;

        const envTex = CubeTexture.CreateFromPrefilteredData("./environment/sky.env", scene);
        scene.environmentTexture = envTex;
        scene.createDefaultSkybox(envTex, true);

        return scene;
    }
    CreateEnvironment(): void {
        const ground = MeshBuilder.CreateGround("ground", { width:10, height:10 }, this.scene);
        const ball = MeshBuilder.CreateSphere("ball", {diameter:1}, this.scene);
        ball.position = new Vector3(0,1,0);
        ground.material = this.CreateAsphalt();
    }
    CreateAsphalt(): PBRMaterial {
        const pbr = new PBRMaterial("pbr", this.scene);
        // The problem happens when adding these textures
        pbr.albedoTexture = new Texture("./textures/asphalt/asphalt_diff.jpg", this.scene);
        pbr.bumpTexture = new Texture("./textures/asphalt/asphalt_nor.jpg", this.scene);
        pbr.roughness = 1;



        return pbr;
    }
}

[sebavan]

Looks like your textures are not loading. do you see any errors in the console ? or the network tab of your browser ?

[inteja]

Possibly because you’re using this.scene to create camera and lights before that property is assigned?

Try using just scene (without this) as you’ve done when creating envTex.

[AbdulrehmanSuliman]

No there are no errors in the console.
When I run the server for the first time it gives good results as expected but when I refresh the problem appears.

[AbdulrehmanSuliman]

Still not working

[sebavan]

Looks more like an issue in your react integration as it happens only on refresh. You could have a look at how @brianzinn implemented GitHub - brianzinn/react-babylonjs: React for Babylon 3D engine to inspire yourself ?

[brianzinn]

Hard to say without the accompanying react code. It may be a StrictMode thing in React 18.

I suggest adding the scene inspector and a few logs to track lifecycles or if you can share a codesandbox. For example, I hope your new PBR(canvasRef.current) is not being called on each react render in the component that creates it. You can limit that with a useEffect and an empty dependency array.

edit: another thing is you are using a relative ref (./environment/... instead of /environment/...) on the environment texture, so if you are navigating with react-router that can stop working, but you would see that in the network tab. That was suggested by @sebavan in original reply, but I didn’t see a confirmation from you that was not the case .

edit: also-- how do you dispose() - are you sure it’s one scene on the canvas?

[Regit]

Your hemiLight intensity is set to 0

[AbdulrehmanSuliman]

Here is my App.tsx code.

import { PBR } from "./BabylonExamples/PBR";

function App() {
  useEffect(() => {
    // Update the document title using the browser API
    const canvas = document.querySelector('canvas')!;

    //create instance of the class as follows
    new PBR(canvas);
  },[]);
  return (
    <div className="App">
      <h3>
        Babylon Examples
      </h3>
      <canvas className="babylon-canvas"></canvas>
    </div>
  );
}

export default App;

I removed the strictMode and the case now is that the first run the scene becomes somehow noisy but when I refresh I get the desired output.

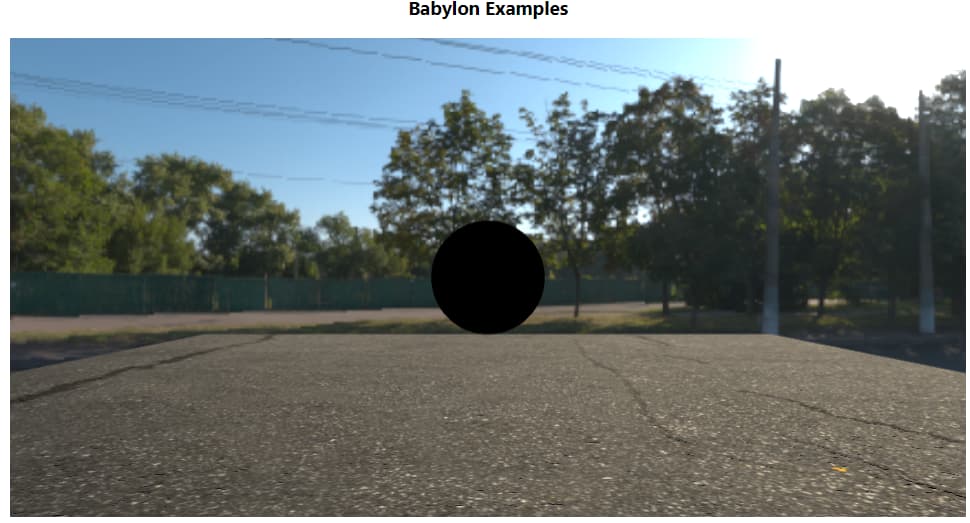

On first run:

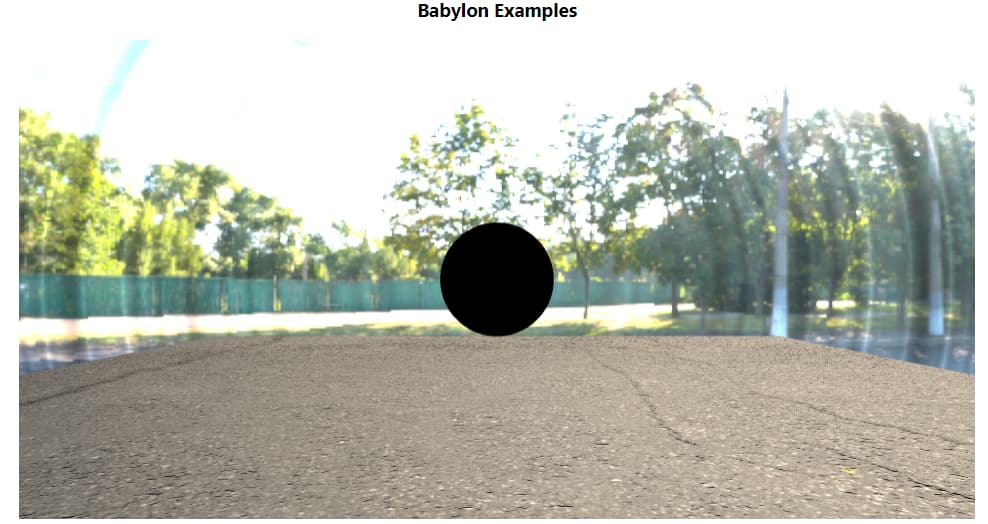

When I refresh:

edit: Noticed that sometimes when the problem happens this appears in the console:

[brianzinn]

@AbdulrehmanSuliman

useEffect(() => {
    // Update the document title using the browser API
    const canvas = document.querySelector('canvas')!;

    //create instance of the class as follows
    new PBR(canvas);
  },[]);

Can you change that to this:

useEffect(() => {
    // Update the document title using the browser API
    const canvas = document.querySelector('canvas')!;

    //create instance of the class as follows
    const pbr = new PBR(canvas);
    return () => {
      pbr.engine.dispose();
    }
  },[]);

You should keep StrictMode - it’s designed to help you detect issues with your code.

[AbdulrehmanSuliman]

This seems to be the answer. Thank you!

[brianzinn]

Glad that solves it for you. You might get some ideas from here (this is where the engine is disposed on component umount that you were missing) - you can remove event listeners in here (ie: if you resize your window your scene can get blurry), etc:
babylonjs-hook/babylonjs-hook.tsx at master · brianzinn/babylonjs-hook (github.com)

It’s a good idea to create your own canvas and use a ref, since the query selector you are using is on the entire document. If you have only one canvas is OK though.

Cheers.
