Hi folks,
so we are investigating in using Babylons right handed coordinate system mode, as the base of our configurators is glTF, which is also right handed.
It’s kinda hard to get CSG2 running with it, here are 2 examples.
Simple Cube
Very basic example, where i want to cut a box into another one.
It works when both boxes are drawn with the mesh builder (right side), but when the base mesh is coming from a glb model the result is incorrect.
Adjusting side orientation or flipping faces of the result mesh helps in this scenario, but that should work out of the box IMO.
Also it works just fine in left handed mode, you can adjust the flag at the beginning of the code.

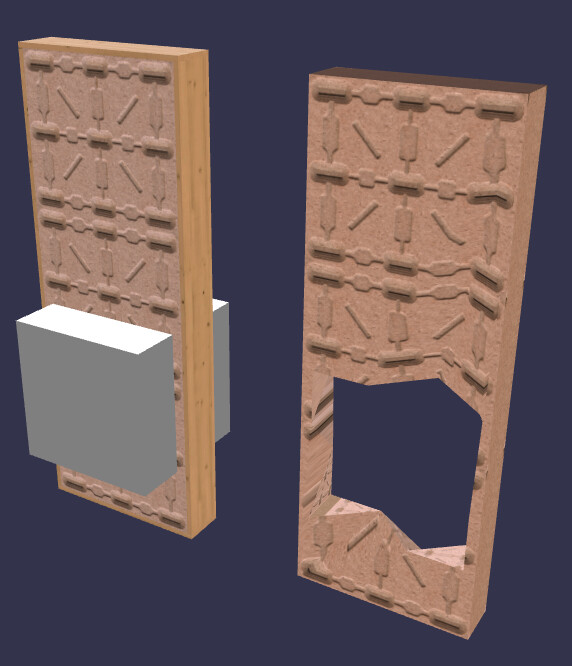

Wall Module
Slightly more complex model, result also looks incorrect.
Differences to the previous example:
- left-handed mode also doesn’t work out-of-the-box
- adjusting side orientation in result mesh doesn’t fix it
Flipping faces of original mesh seems to do the trick (in right-handed mode), which is even less convenient, as the mesh geometry should definitely be correct already.
Would be amazing if you can have a look into these 2 examples and give some indications!
BG Markus
